Creating Setup Time Entries (via Overview) – Fenwick Support

Yusheng Shu

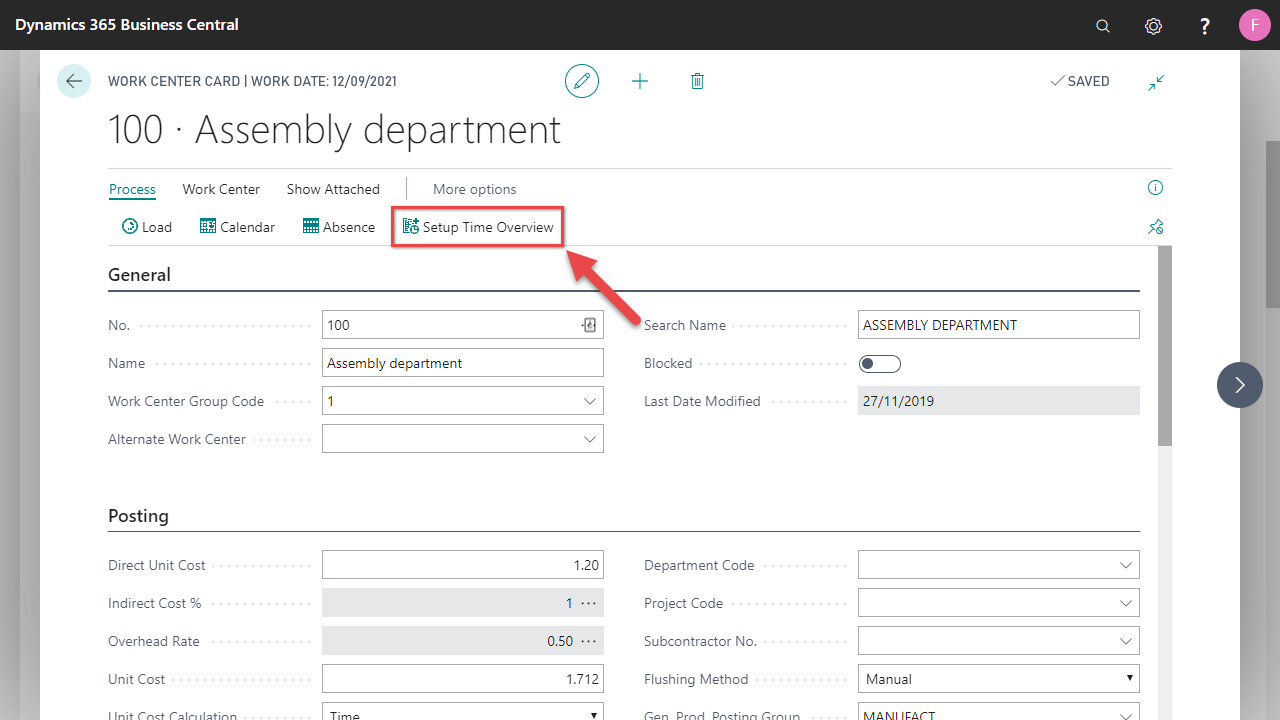

Open Setup Time Overview page from the Work Center list or card page. It can also be found via Search.

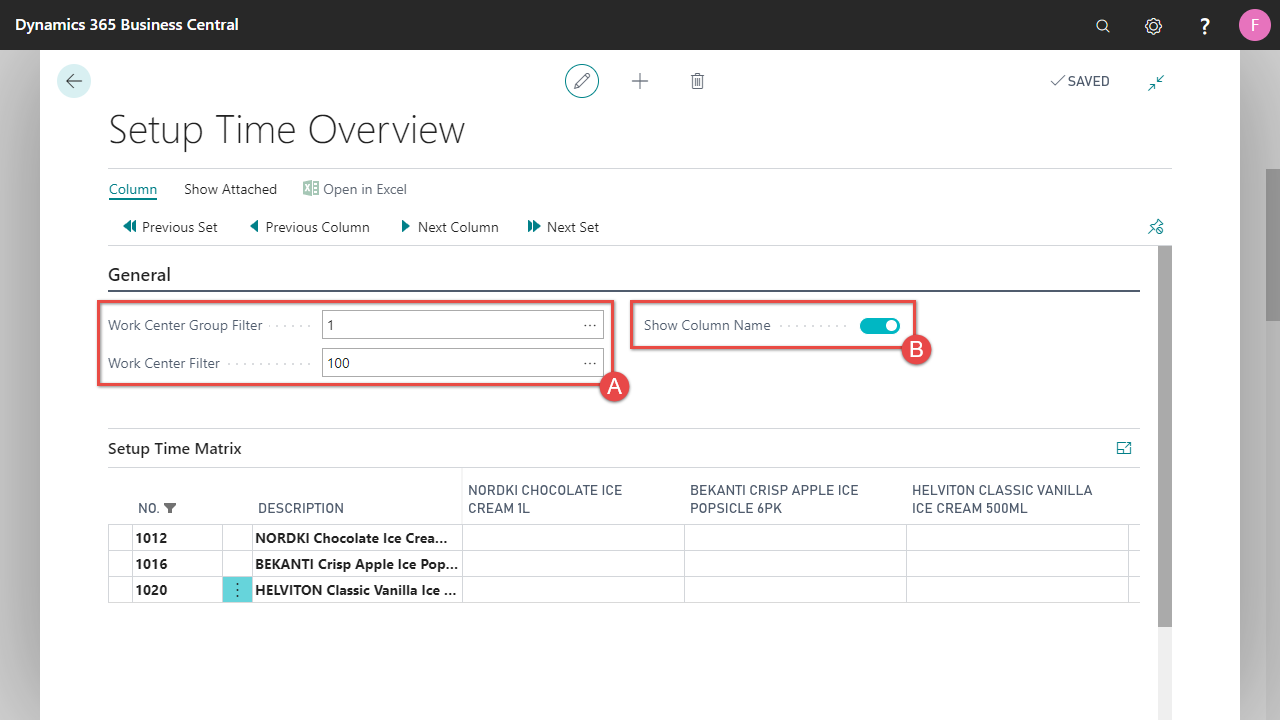

(Optional) Filter Items with routing lines by Work Center or Work Center Group by clicking the lookup button (3 dots) beside Work Center Filter or Work Center Group Filter (A). Additionally you can show Item names in the column headings by toggling Show Column Name (B).

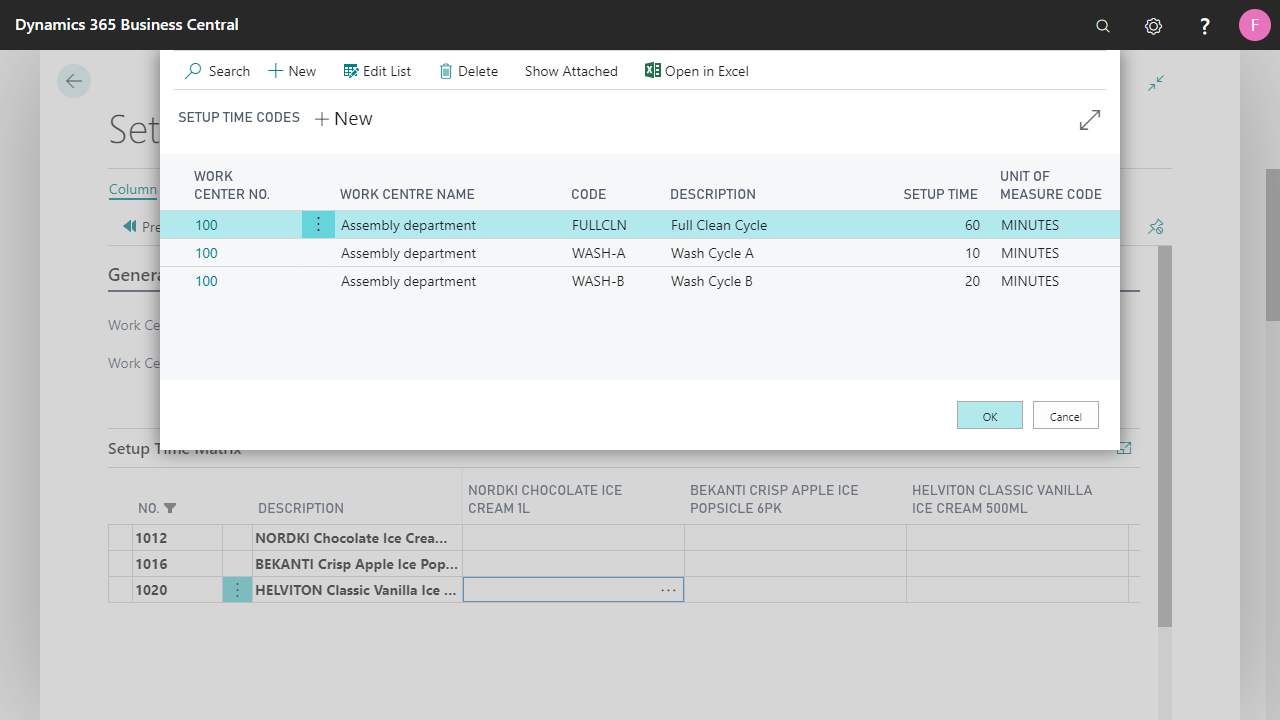

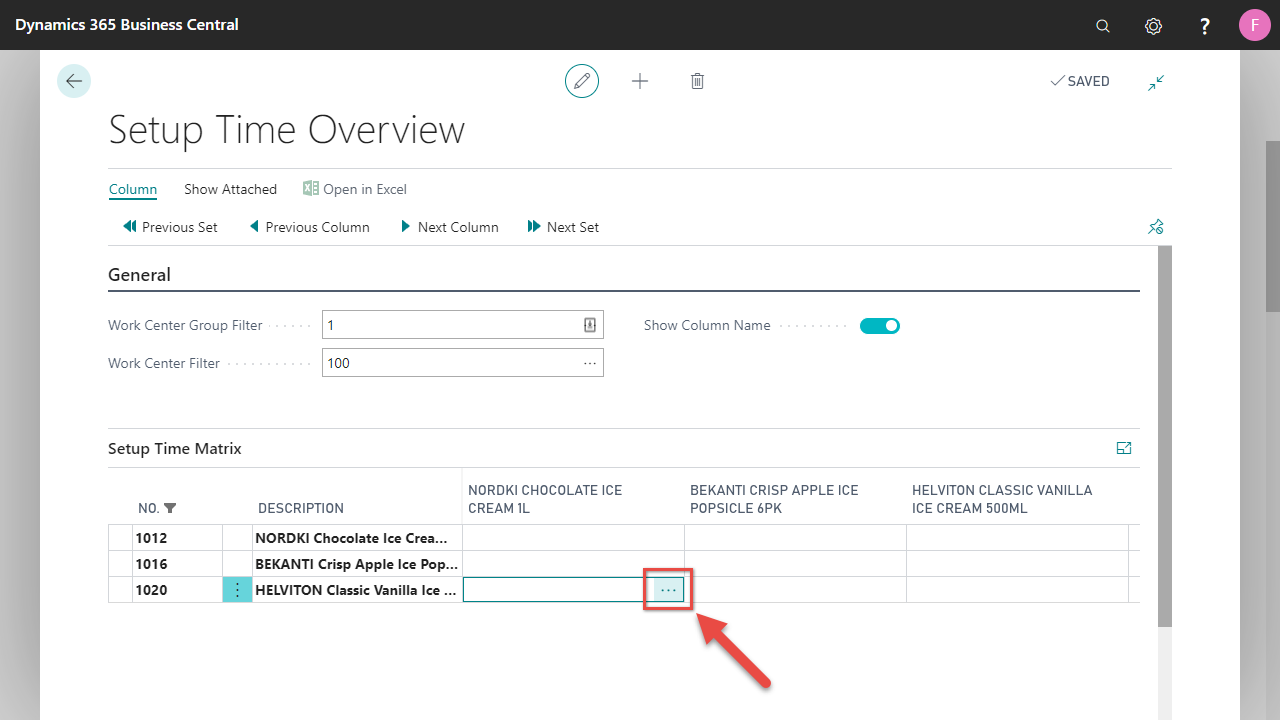

Select which Setup Time Code(s) should apply between the routing lines on an Item by clicking the drill down button (3 dots) on an cell inside Setup Time Matrix. Any Setup Time Code applied to the cell will alter the production setup time of the Item on the column, when that Item is produced after the Item on the row. In this example, we are setting up the setup time required when producing Chocolate Ice Cream after Classic Vanilla Ice Cream.

You can apply multiple Setup Time Codes per Item combination per Work Center, doing so will cause the cell to display 'MULTIPLE' instead of the Setup Time Code.
