Setting up Data Integrator

Data Integrator facilitates integration between various data providers and Dynamics 365 Business Central. It's used in conjunction with the Interface Controller app.

Data Integrations can be setup for the following data sources:

• On-Premise Storage
• Cloud Storage
• Secure FTP

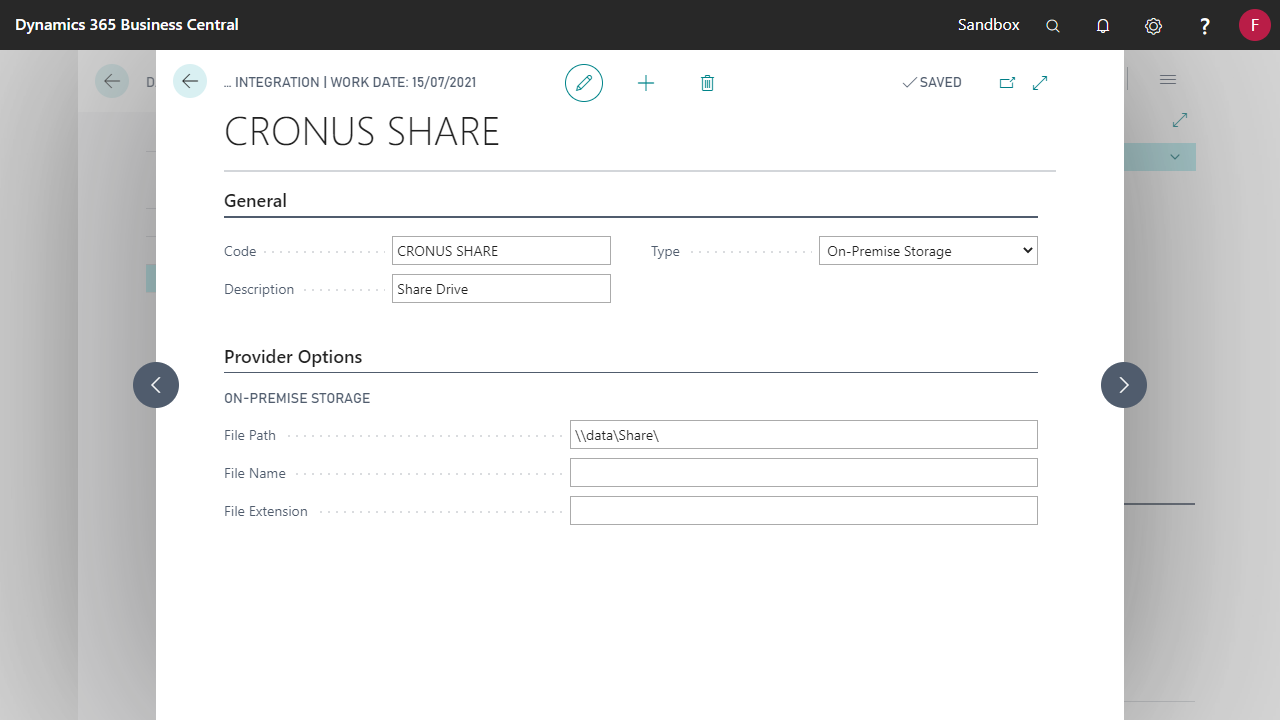

On-Premise Storage

Use Data Integrator for On-Premise for links to local providers such as networked share drives.

1. Create a new Data Integration record.

   Field	Description
   Code	Enter a unique code.
   Description	Enter a relevant description.
   Type	On-Premise Storage.
   File Path	Enter the file path to the relevant folder. End with a '\'.
   File Name	Enter a specific file name, if required. Can be left blank.
   File Extension	Enter a specific file extension, if required. Can be left blank.

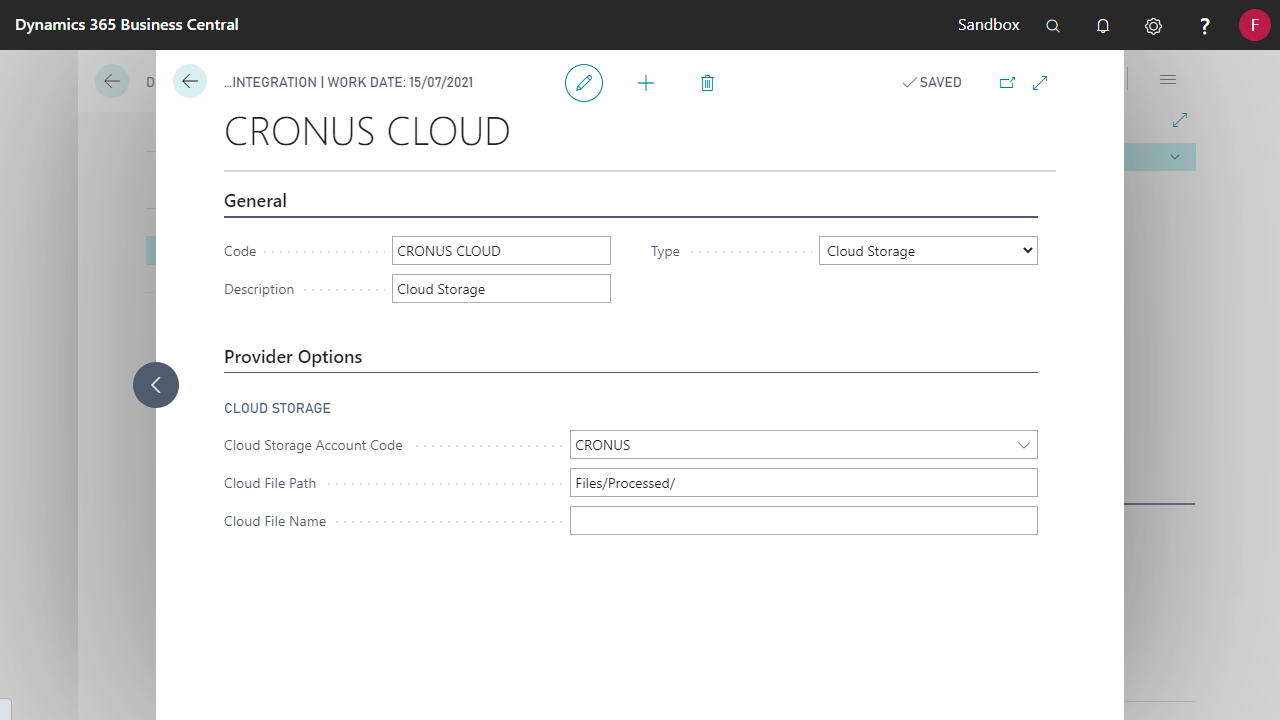

Cloud Storage

Use Data Integrator for Cloud Storage links to Azure Storage accounts.

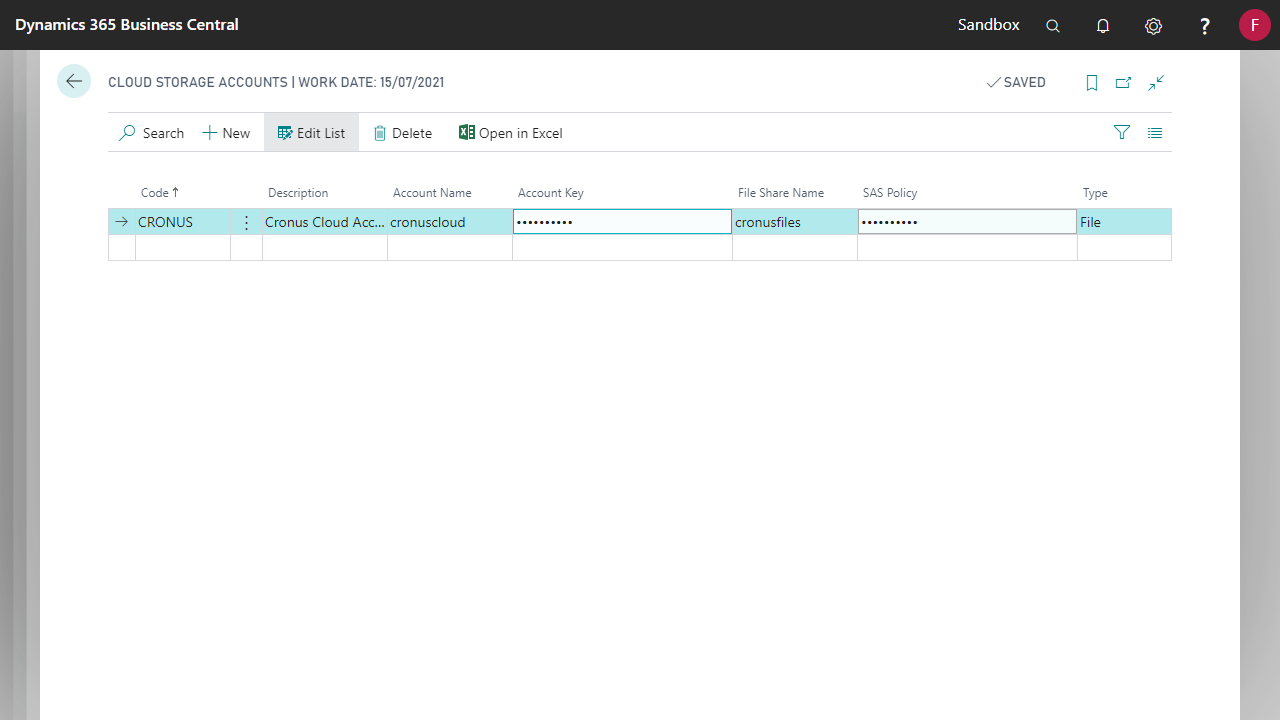

1. Create a Cloud Storage Account record for each cloud storage setup.
2. Create a new Data Integration record.

   Field	Description
   Code	Enter a unique code.
   Description	Enter a relevant description.
   Type	Cloud Storage.
   Cloud Storage Account Code	Select a Cloud Storage Account (as setup above).
   Cloud File Path	Enter the file path to the relevant folder. End with a '/'.
   Cloud File Name	Enter a specific file name, if required. Can be left blank.



Secure FTP

Use Data Integrator for Secure FTP for links to FTP servers.

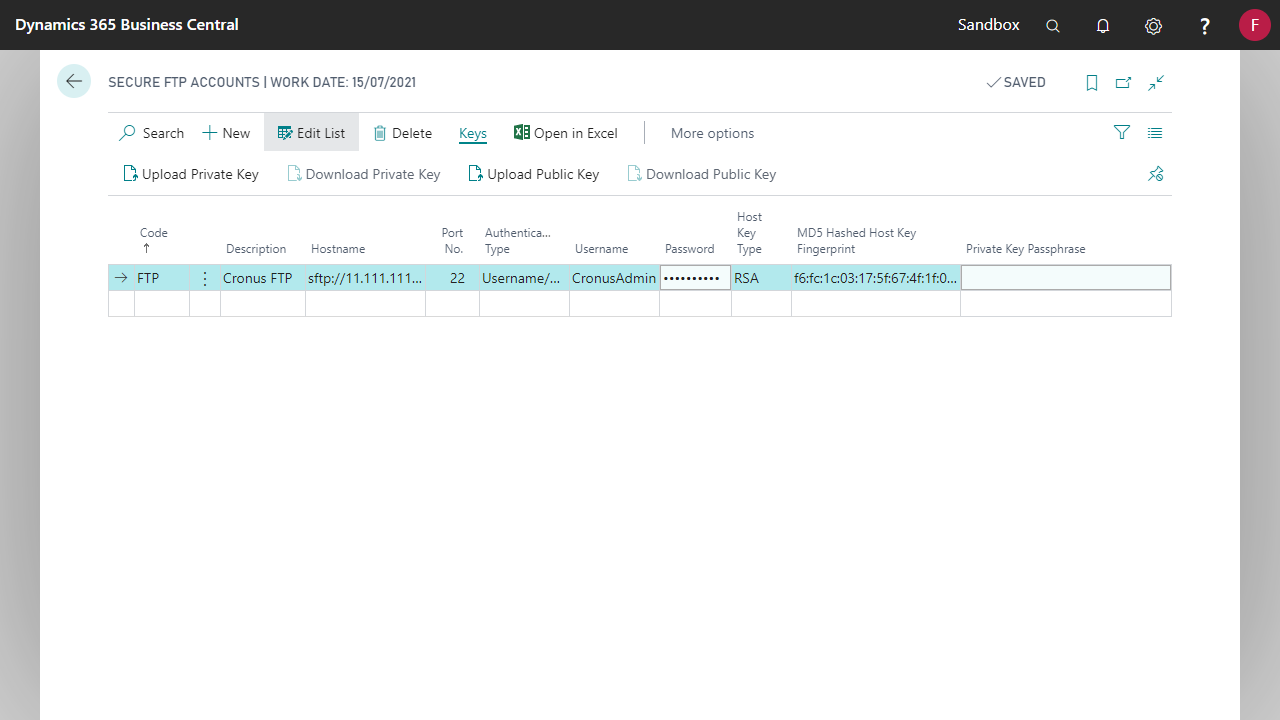

1. Create a Secure FTP Account for each FTP setup.

   Field	Description
   Code	Enter a unique code.
   Description	Enter a relevant description.
   Hostname	Enter the FTP Hostname.
   Port No.	Enter the Port No. for the FTP.
   Authentication Type	Username/Password: Fill in Username and Password fields. SSH Private Key: Fill in Private Key Passphrase field. Upload Private Key and Upload Public Key via functions on the ribbon.
   Username	Enter Username if Authentication Type = Username/Password.
   Password	Enter Password if Authentication Type = Username/Password.
   Host Key Type	Select the Host Key Type for the FTP.
   MD5 Hashed Host Key Fingerprint	Enter the MD5 Hashed Host Key Fingerprint for the FTP. The fingerprint is separated by semicolons.
   Private Key Passphrase	Enter if Authentication Type = SSH Private Key.



2. Create a new Data Integration record.

   Field	Description
   Code	Enter a unique code
   Description	Enter a relevant description
   Type	Secure FTP (SFTP)
   SFTP Account Code	Select a Secure FTP Account (as setup above)
   File Path	Enter the file path to the relevant folder. End with a '\'
   File Name	Enter a specific file name, if required. Can be left blank
   File Extension	Enter a specific file extension, if required. Can be left blank
